Polyethylene (HDPE) Package Pump Station

Excel Fluid Group Packaged HDPE Pumping Stations has been specifically designed for sewage, sanitary, and stormwater applications with the need for a lightweight, corrosion resistant solutions. Made with Weholite® structurally reinforced polyethylene meeting ASTM F894, it makes it the ideal choice for prefabricated pump station in harsh applications. The polyethylene wet wells are immune to Hydrogen Sulfide (H2S), pH corrosion and deterioration.

HDPE Formula
These stations are available up to 11 ft. in diameter and 55 ft. deep with a wide range of submersible pumps including grinder and non-clog style pumps. The complete station includes piping, valves, and lift out fittings.

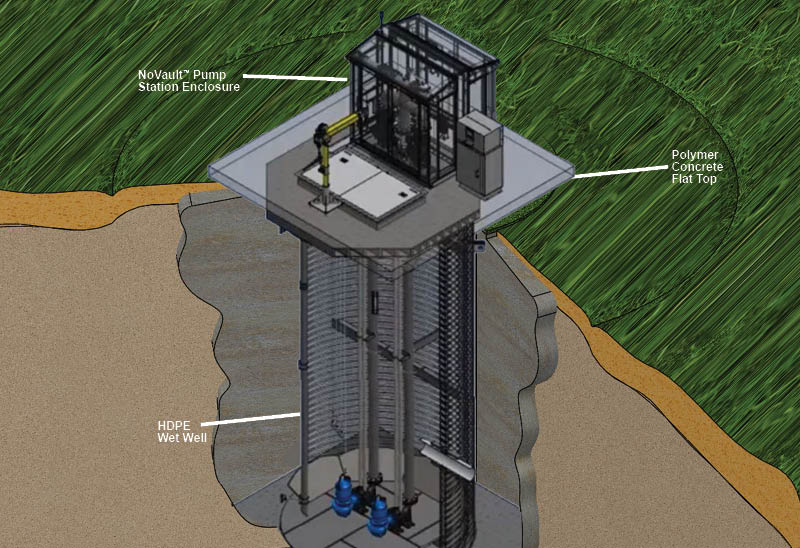

HDPE In Field Cutout - Vandalia



Submit a Project Inquiry



Wood Island - Drawing

Applications:

  • Raw sewage
  • Leachate
  • Effluent
  • Stormwater
  • Subsoil Drainage
  • Industrial Waste
  • Residential Wastewater
  • Institutional Wastewater

Vandalia - HDPE Build21 Point Firing Range - ShipmentSuccessful Way - Install

Challenges Solved:

  • Increasing asset ownerships costs
  • Inflated installation costs
  • Traditional concrete methods are compromised by Hydrogen Sulfide (H2S) corrosion
  • Rehabilitation / maintenance costs for existing infrastructure
  • Real estate and project easement costs

Wood Island - Meter VaultWood Island - Wet WellPumping Equipment

A complete range of heavy duty submersible solids handling pumps, chopper pumps, standard and ultra-high head grinder pumps are available in either freestanding or guide rail mount. UL FM or CSA explosion proof approvals available.

Benefits:

  • HDPE wet wells have a design life of up to 100 years
  • Prevents groundwater infiltration into wet well
  • Eliminates interior coating requirements and maintenance to combat H2S corrosion
  • Reduces excavation requirements compared to traditional pump stations

Northern Tier - HDPE DesignAccessories / Options:

  • Simplex, Duplex and Triplex configurations
  • Safety Grate under the Hatch
  • Bypass Piping and Valves for Portable Pump hook up
  • Prewired Controls and Integration
  • Drain back valve for the force main necessarily for freeze protection in seasonal use locations
  • NPFA-820 qualifying designs available

PDF - EFG HDPE Pump Station Brochure

PDF - EFG NoVault NV2 HDPE Pump Station Drawing

PDF - EFG NoVault NV3 HDPE Pump Station Drawing
