ArcSentry™ Control Panel

Excel Fluid Group has worked with municipalities throughout North America to develop the ArcSentry™ Control Panel to minimize your risk, by providing a well designed, intrinsically safe panel where maintenance can only be performed on the high voltage compartment with power off.

ArcSentry Control Panel Diagram 800x375

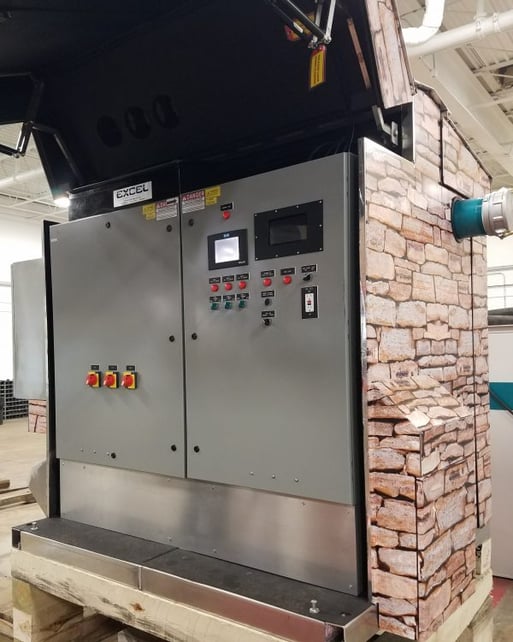

Outside the Control Panel

Inside the Control Panel

  1. Gullwing doors from the NoVault™ to protect the operator and the controls from the elements
  2. HMI controller provides access to wet well levels both graphically and numerically, flow monitoring, VFD speed reference, alarm logs, and more
  3. Multiple compartment design to reduce the risk of injury
  4. Pump disconnect for each individual pump
  5. Convenience GFCI outlet
  1. High voltage motor control cabinet segmented for safer use
  2. Low voltage control cabinet and SCADA for each of use from the high voltage compartment
  3. Battery backup for the Programmable Logic Control
  4. Intrinsically safe barriers for level control
 We can work with you to configure and integrate your pump station control systems to fit with the ArcSentry to your exact requirements on existing or new infrastructure. Additionally, we'll provide readily available schematics, clean wire tags and labels, and any resources your team needs for reference as agreed upon in the submittal.

UL Certifications:

  • UL508A: UL-US-2129801-0

  • UL698A: E521135
