Custom Pump Stations

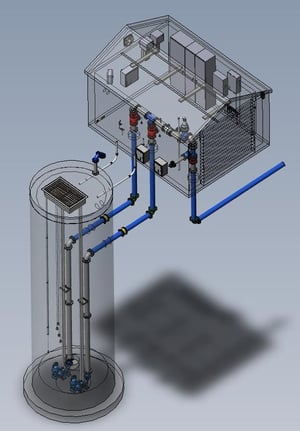

Excel Fluid Group can design and supply a complete pump station package for your specific application. Our prefabricated enclosures are built with pre-installed components designed to replace the need for separate valve vaults or control panel racks. The complete package is available in a wide range of sizes and can be fitted with sewage, clean water or other style pumps. Units are delivered to job-site as complete, factory-tested, turnkey packages. This provides an efficient and easy install process, removing the need for on-site skilled labor. Typically adjacent to the wet wells, they provide ample walk-in space for operators.

We have years of experience building custom engineered skid systems for a diverse portfolio of industries. We know a great system starts here, with a great process. Each system is carefully designed for performance and serviceability. Our expertise brought to you from initial concept through to installation and start up. Please contact us for additional information.

Submit a Project Inquiry

Precast Concrete Enclosure

• Standard 10 ft. wide by up to 20 ft. long buildings (Up to 12 ft. wide upon request).
• All panels, including the floor, roof, and walls are steel-reinforced precast and pre-assembled from factory as a finished unit.
• An excellent option for permanent, highly visible, and heavily engineered installations.


Structural Steel Prefabricated Enclosure

• Standard 10 ft. wide (up to 16 ft. wide upon request) with pre-assembled building lengths of greater than 20 ft. available via field assembled modular sections.
• Pre-insulated from factory.
• Painted galvannealed steel lifting base and floor come standard.
• An excellent option for many projects, combining light lifting and lead times with long lasting structural features.


Fiberglass Prefabricated Enclosures

• Standard 10 ft. wide (up to 14 ft. wide upon request) with pre-assembled building lengths of greater than 20 ft. available via field assembled modular sections.
• Constructed from a single piece molded fiberglass and reinforced frame.
• Non-corrosive, sound reducing material.
• An excellent option for lightweight lifting and expeditious timelines.

Standard Prefabricated Enclosure Features

• Engineered for site specific wind and snow loads.
• All units are available with a 3rd Party P.E. Stamp.
• Modular or multi piece builds available for larger projects.
• All units feature multiple exterior designs to accommodate any aesthetic requirements.
