Project Name: Village of Barnesville Wastewater Improvements
Engineer: ADR & Associates, Ltd.
Installed: October 2015

Pump Station Details

Pump Station #1

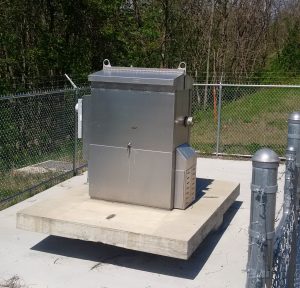

• Excel Aluminum NoVault Enclosure
• Arc Sentry Control Panel w/ Square D VFDs & EnergyView Controller
• Concrete Wet Well – 6' x 14'

Pump Station #2

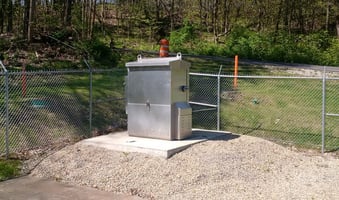

• Excel Aluminum NoVault Enclosure
• Arc-Sentry Control Panel w/ Square D VFDs & EnergyView Controller
• Concrete Wet Well – 6' x 12'

Pump Details

Pump Station #1

• 2) Barnes SH Series Non-Clog Solids Handling Pumps, #4SHVB
• Design Point: 300 GPM & 145' TDH
• 4", 40 HP, 480 Volt, 3 Phase, 3450 Rpm

Pump Station #2

• 2) Barnes SH Series Non-Clog Solids Handling Pumps, #4SHVA
• Design Point: 150 GPM @ 135' TDH
• 4", 30 HP, 480 Volt, 3 Phase, 3450 Rpm

Piping Details

• 4" Ductile Iron Piping
• 4" Bypass
• 4" Plug Valves & 4" Check Valves

Accessories:

• Electric Lifting Hoist
• Generator Receptacle
• Access Hatch Safety Grates
• Electrical Plugs & Receptacles
