Understanding the Importance of Accurate Wet Well Design
Accurate wet well design calculations are crucial for the efficiency and longevity of a water or wastewater pump station. A correctly designed wet well ensures that the pumps operate within their recommended submergence range, under the pump manufacturer's max starts per hour, and provides for emergency storage requirements. It also helps in managing peak flow conditions and avoids surcharge and overflow situations, which can lead to environmental and regulatory issues. With the 3rd party reviewed Wet Well Design Calculator from Excel Fluid Group, engineers can easily produce reliable designs, that adhere to trusted industry standards and best practices.
Incorporating Industry Standards for Reliable Results
The Wet Well Design Calculator is built on trusted industry standards such as the EPA Green Book, Hazen-Williams Equations, and 10 State Standards. These benchmarks ensure that the designs are not only efficient but also compliant with regulatory requirements. By adhering to these standards, engineers can be confident in the reliability and accuracy of their pump station's design. Additionally, it allows for user specific inputs to adjust diameter and emergency retention time needed, providing flexibility to meet specific project needs.
Essential Inputs for Wet Well Design Calculations
Before diving into the Wet Well Design Calculator, it's vital to gather all the necessary data required to calculated your project's requirements. The essential inputs include:
Design Inflow to the Pump Station: This is typically measured in gallons per minute (GPM) but the calculator also accepts other common units like gallons per day (GPD) or million gallons per day (MGD), which it converts to GPM throughout the calculation.- System High and Low Elevations: These elevations help in calculating the static head.
- Force Main Dimensions and Material: The length, diameter, and type of material of the force main.
- Grade and Discharge Elevations: Helpful for determining overall wet well size.
- Emergency Retention Time: If required, this ensures adequate capacity during emergencies.
- Lowest Inlet Depth: This is the maximum depth from grade at which the inlet pipe enters the wet well.
Having these inputs ready will streamline the process and ensure the accuracy of the results.
Step-by-Step Guide to Using the Wet Well Design Calculator
- Input Design Flow Rate: Start by entering the average daily flow rate into the pump station
- Select Peak Factor: The EPA recommends a peak factor between 3 and 5. This factor adjusts the flow rate to account for peak conditions.
- Enter System Elevations: Input the high and low points of the system to calculate the static head.
- Specify Force Main Details: Choose the material and diameter of the force main. The calculator will use these to determine the friction loss.

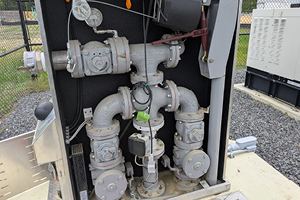

Add Force Main Fittings: Include any elbows, tees, or other fittings that will affect the flow and friction loss.- Select Pipe Tree Configuration: This includes standard or custom configurations for the valve vault.
- Calculate Total Dynamic Head (TDH): The calculator will combine the static head and friction loss to provide the TDH.

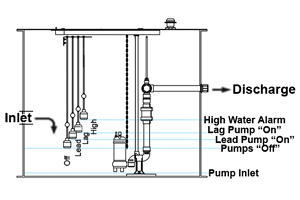

- Determine Wet Well Size: Choose between duplex or triplex applications and select the wet well diameter to find the gallons per vertical foot.
- Set Pump Start Parameters: Input the recommended starts per hour to calculate the pump cycle time and working volume.
- Input Emergency Retention Time: This will show the emergency depth and volume in the wet well.
- Finalize Elevations: Add the top of wet well elevation and discharge elevation to complete the design.
Generating and Interpreting Your Design Report
Once all inputs are entered, the calculator generates a comprehensive PDF report. This report includes:
- Design Point: The recommended pump capacity and TDH.

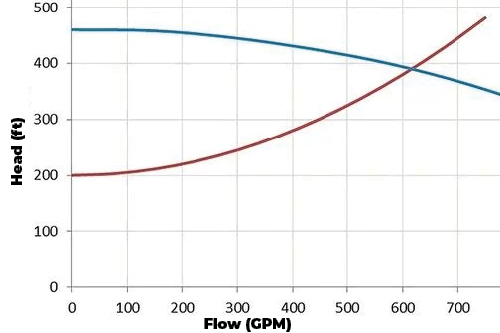

- System Curve: A graphical representation of the flow rate versus head.
- Wet Well Size and Depth: Detailed dimensions to ensure optimal pump performance.
- Emergency Retention Volume: Calculations to prepare for unforeseen situations.
Interpreting this report helps engineers make informed decisions, ensuring that the pump station is designed to handle both average and peak conditions efficiently.
Advanced Tips for Optimizing Your Pump Station Design
To further enhance the pump station design:
- Know Your Peaking Factor: Adjust the flow rate to account for peak times, ensuring the system can handle higher loads.
- Select Appropriate Force Main Material: Materials like HDPE (High-Density Polyethylene) offer lower friction losses and longer lifespan.
- Consider Pump Starts: Limiting the number of starts per hour can extend the pump's life and reduce maintenance.
- Plan for Emergency Scenarios: Incorporate emergency retention time to prevent overflow during power outages or pump failures.
- Stay Informed with Industry Developments: Regularly consult resources such as the Excel Fluid Group blog for updates and best practices.
By following these tips and utilizing the Wet Well Design Calculator, engineers can achieve precise, reliable, and efficient pump station designs, ensuring long-term operational success. We hope this helps give you a better understanding of how you can design a pump station using the Wet Well Design Calculator. To learn more about innovations in the pump station industry, check out our blogs on HDPE vs. Concrete Pump Station Wet Wells or How to Design a Submersible Wastewater Pump Station. If you have any questions on your next pump station design, contact us today!
